Lowbed Trailer

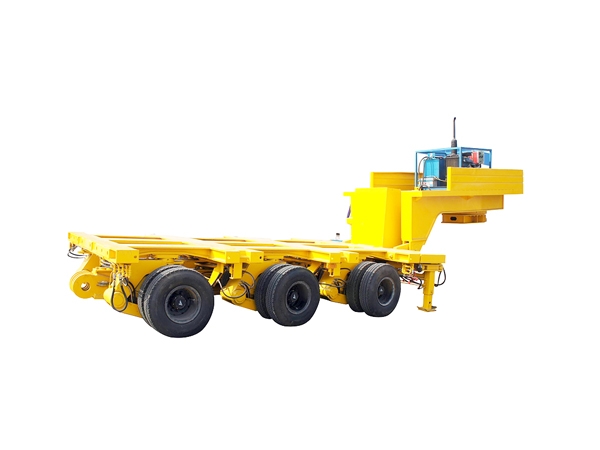

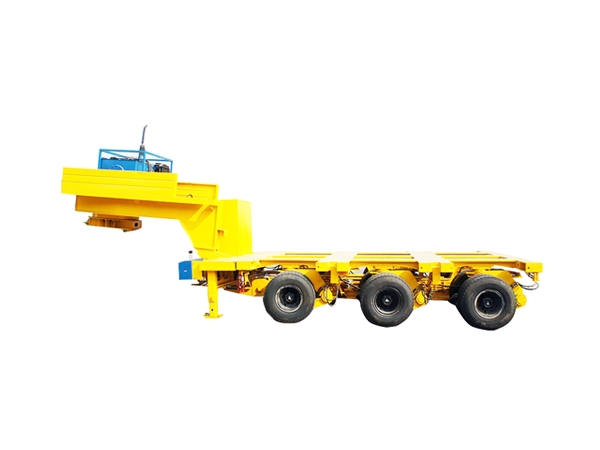

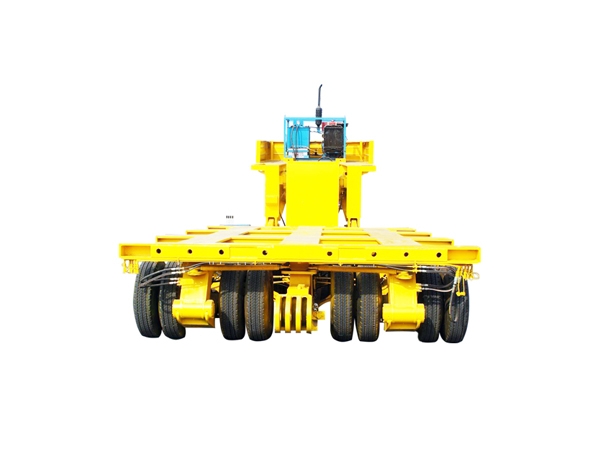

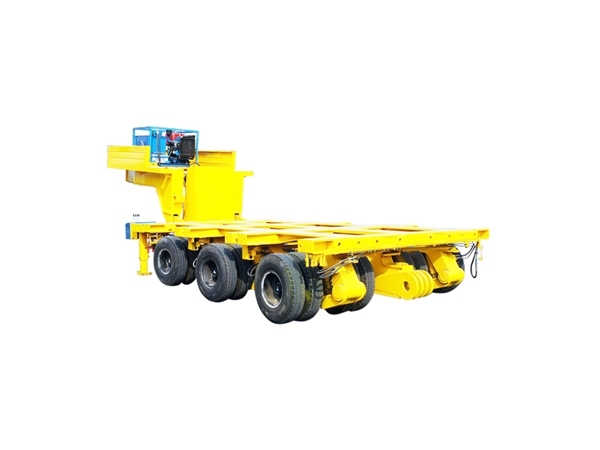

Modular Lowbed Trailer

Product Model: STDMLT
Product Type: Lowbed Trailer
Payload: 96 tons
Delivery Time: 40 days
  • Specification
    1. Dimension: 5800 x 3000 x 1200 mm
    2. Tare weight: 20000 kg
    3. Payload: 96 tons
    4. The Max. steering angle: 45°

    Standard Configuration
    1. Axle: 10 ton Fuwa brand, 3-line and 6-axle
    2. Suspension: Hydraulic steering suspension
    3. King pin: 2", bolt on type
    4. Landing gear: 28 ton, two speeds
    5. Tire: 215/75R17.5, 24 units
    6. Rim: 6.0-17.5, 24 units
    7. Braking system: Gladhand valve, Wabco relay valve, 30/30 double brake chambers on rear axle, 30 single chambers on other axles
    8. Electrical system: Dual circuit, 7-way split pin receptacle plug, LED light
    9. ABS: None
    10. Painting: Blasting sand before painting, one coat primer and two coat finish painting, colour supplied by customer
    11. Mudguard: Plastic or steel
    12. Others: 1 tool box, 1 wheel carrier, excluding spare wheel

    Optional Configurations
    1. Air suspension: Firestone, Goodyear or Chinese brand
    2. ABS system: Wabco or Chinese brand
    3. Axle: BPW 12 ton
    4. Ladder operation: Hydraulic
    5. Modular quantity add or reduce
  • 1. Low bed trailer can be used to transport many kinds of mechanical equipment.
    2. The center of its mass is very low, so it’s very safe during the transportation.
    3. Multi-axle trailers, modular trailers, etc, for your reference.
  • Please send us your inquiry and basic information, our sales will contact you asap!

    *

    *

    *
