Product Model: STD5AEX

Product Type: Lowbed Trailer

Payload: 80 tons

Delivery Time: 40 days

Specification

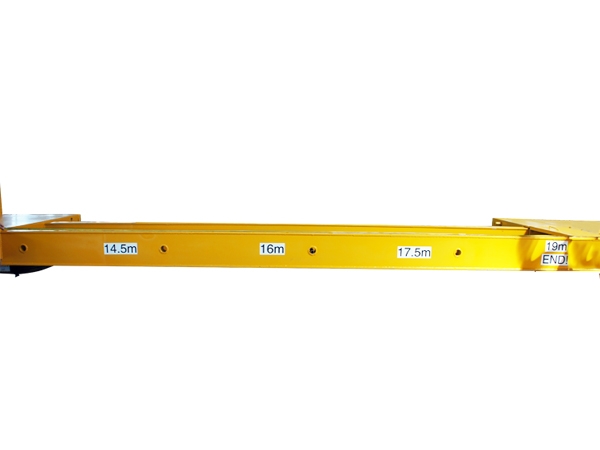

1. Dimension: 13050 x 3000 x 1140 mm (Extended: 19050 x 3000 x 1140 mm)

2. Tare weight: 13200 kg

3. Payload: 80 tons

4. The Max. steering angle: 16°

Standard Configuration

1. Axle: 12 ton, 5’’ round axle, 5 units, the last two axles are self-steering axles

2. Suspension: Mechanical suspension

3. King pin: 2", bolt on type

4. Landing gear: 28 ton, two speeds

5. Tire: 10.00R20, 20 units

6. Rim: 7.5-20, 20 units

7. Braking system: Gladhand valve, Wabco relay valve, 30/30 double brake chambers on all axles

8. Electrical system: Dual circuit, 7-way split pin receptacle plug, LED light

9. ABS: None

10. Painting: Blasting sand before painting, one coat primer and two coat finish painting, colour supplied by customer

11. Mudguard: Plastic or steel

12. Others: 1 tool box, 1 wheel carrier, excluding spare wheel

Optional Configurations

1. Air suspension: Firestone, Goodyear or Chinese brand

2. ABS system: Wabco or Chinese brand

3. Axle: BPW 12 ton
1. Low bed trailer can be used to transport many kinds of mechanical equipment.

2. The center of its mass is very low, so it’s very safe during the transportation.

3. Multi-axle trailers, modular trailers, etc, for your reference.
