Other Trailer

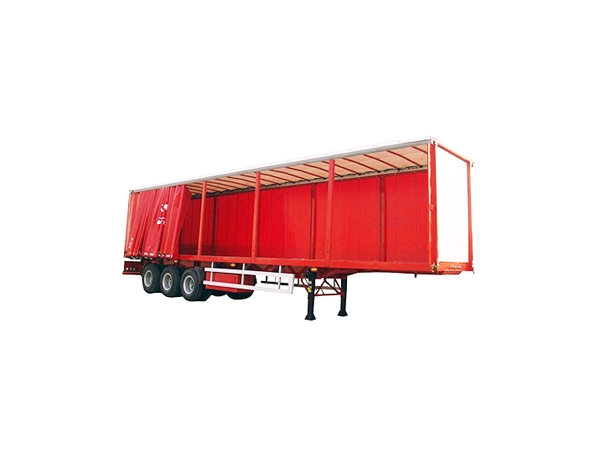

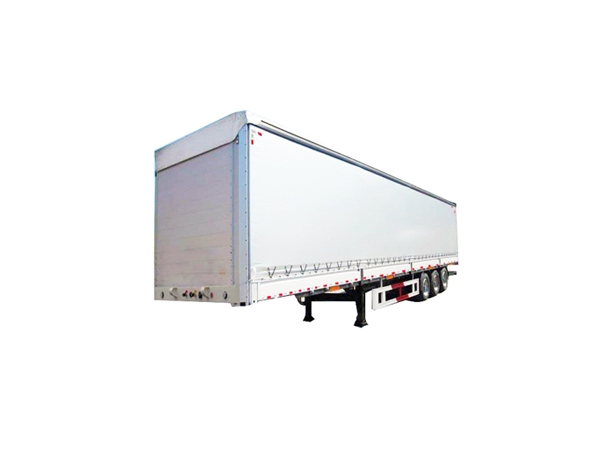

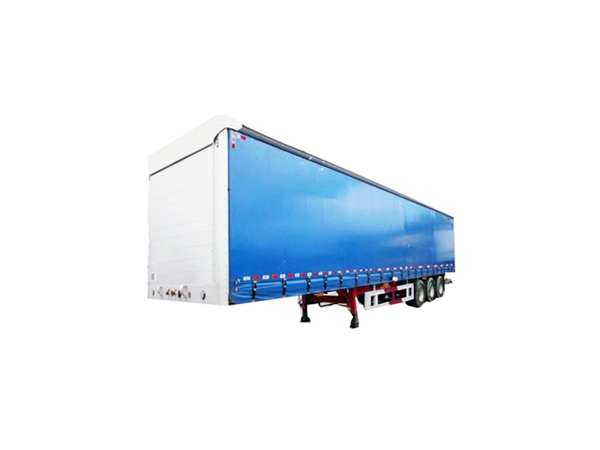

Side Curtain Trailer

Product Model: STDSCT
Product Type: Side Curtain Trailer
Payload: 35 tons
Delivery Time: 40 days
  • Specification
    1. Overall dimension: 13000 x 2500 x 3850 mm
    2. Container dimension: 12840 x 2400 x 2400 mm
    3. Tare weight: 8000 kg
    4. Capacity: 74 CBM

    Standard Configuration
    1. Axle: 13 ton Fuwa brand, 150x150, 3 units
    2. Suspension: Air suspension
    3. King pin: 2", bolt on type
    4. Landing gear: 28 ton, two speeds
    5. Tire: 11R22.5, 12 units
    6. Rim: 8.25-22.5, 12 units
    7. Braking system: Gladhand valve, Wabco relay valve, 30/30 double brake chambers on rear axle, 30 single chambers on other axles
    8. Electrical system: Dual circuit, 7-way split pin receptacle plug, LED light
    9. ABS: None
    10. Painting: Blasting sand before painting, one coat primer and two coat finish painting, colour supplied by customer
    11. Mudguard: Plastic or steel
    12. Others: 1 tool box, 1 wheel carrier, excluding spare wheel

    Optional Configurations
    1. Lift axle system
    2. ABS system: Wabco or Chinese brand
    3. Axle: BPW 12 ton
  • 1. Side curtain trailer is easily to load and unload goods from both sides.
    2. This kind of trailer has many advantages, such as flexibility, efficiency and safety.
  • Please send us your inquiry and basic information, our sales will contact you asap!

    *

    *
