Other Trailer

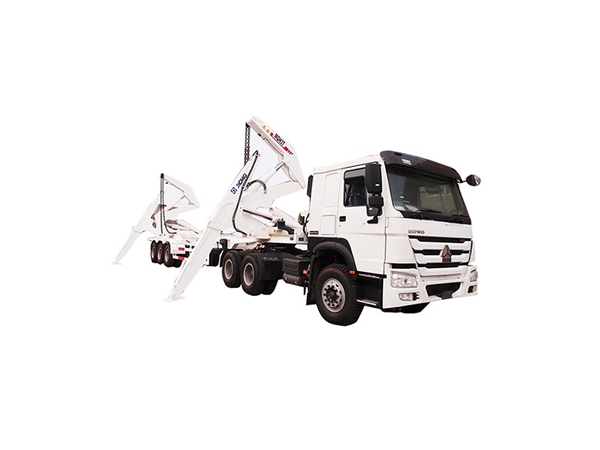

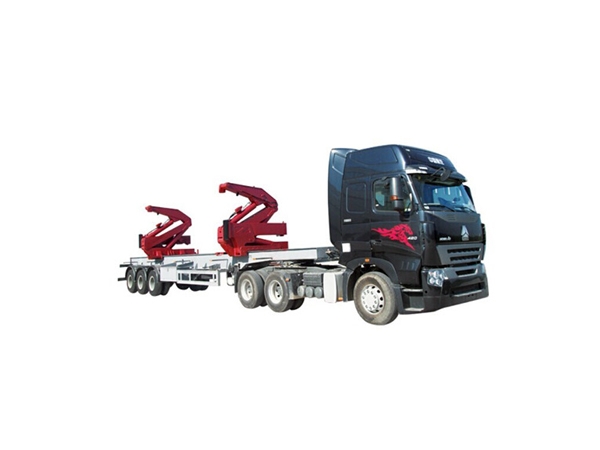

Container Self-loading Trailer

Product Model: STDCST
Product Type: Container Self-loading Trailer
Payload: 31/36 tons
Delivery Time: 40 days
  • Specification
    1. Overall dimension: 14780 x 2490 x 3850 mm
    2. Loading dimension: 20 feet or 40 feet ISO shipping container
    3. Tare weight: 9500 kg
    4. Gross weight: 40.5/45.5 tons

    Standard Configuration
    1. Axle: 13 ton Fuwa brand, 150x150, 3 units
    2. Suspension: Mechanical suspension
    3. King pin: 2", bolt on type
    4. Landing gear: 28 ton, two speeds
    5. Tire: 11R22.5, 12 units
    6. Rim: 8.25-22.5, 12 units
    7. Braking system: Gladhand valve, Wabco relay valve, 30/30 double brake chambers on rear axle, 30 single chambers on other axles
    8. Electrical system: Dual circuit, 7-way split pin receptacle plug, LED light
    9. ABS: None
    10. Model of side crane: MH360
    11. Max. lifting weight: 36000 kg
    12. Crane working pressure: 25 Mpa
    13. Control cabinet: CODO
    14. Remote control: SANREMO
    15. Hydraulic valve: HC
    16. Hydraulic pump: PERMCO

    Optional Configurations
    1. Air suspension: Firestone, Goodyear or Chinese brand
    2. Lift axle system
    3. ABS system: Wabco or Chinese brand
    4. Axle: BPW 12 ton
  • 1. Container self-loading trailer is used to load and unload 20 feet or 40 feet ISO shipping container.
    2. This kind of trailer is easily to load and unload shipping container from both sides.
  • Please send us your inquiry and basic information, our sales will contact you asap!

    *

    *
