Lowbed Trailer

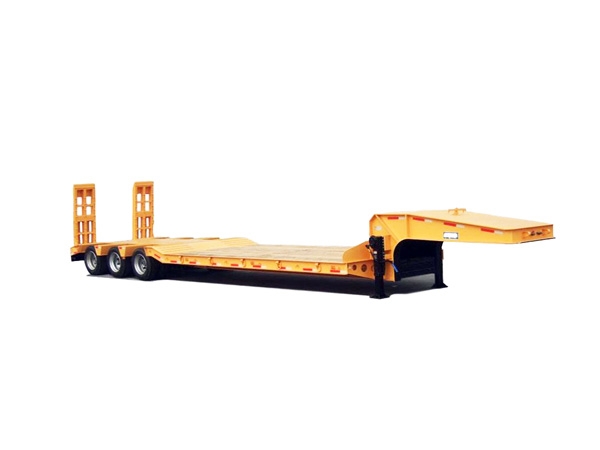

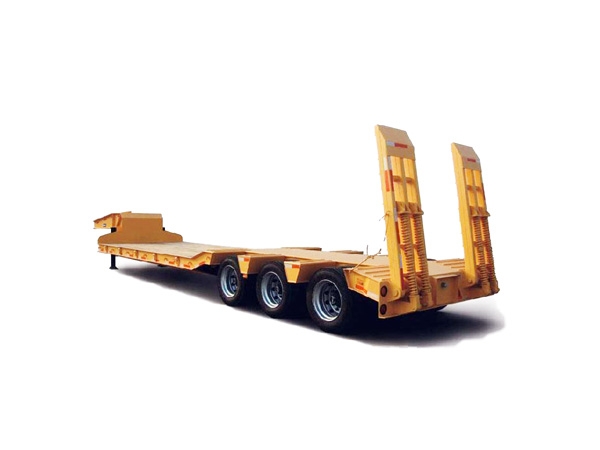

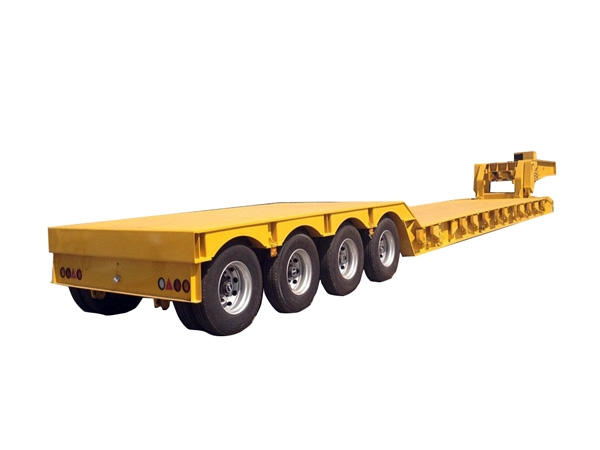

Concave Beam Lowbed Trailer
Product Model: STDCLT
Product Type: Lowbed Trailer
Payload: 35/47/60 tons
Delivery Time: 40 days
-
Specification1. Dimension: 11245 x 3000 x 2980 mm (Two Axles, LxWxH); 13000 x 3000 x 2980 mm (Three/Four Axles, LxWxH)2. Tare weight: 8000 kg (Two Axles); 9000 kg (Three Axles); 9500 kg (Four Axles)3. Payload: 35 tons (Two Axles); 47 tons (Three Axles); 60 tons (Four Axles)4. Ladder operation: Manual
Standard Configuration1. Axle: 13 ton Fuwa brand, 150x150, 2/3/4 units2. Suspension: Mechanical suspension3. King pin: 2", bolt on type4. Landing gear: 28 ton, two speeds5. Tire: 8.25R20, 8/12/16 units6. Rim: 6.5-20, 8/12/16 units7. Braking system: Gladhand valve, Wabco relay valve, 30/30 double brake chambers on rear axle, 30 single chambers on other axles8. Electrical system: Dual circuit, 7-way split pin receptacle plug, LED light9. ABS: None10. Painting: Blasting sand before painting, one coat primer and two coat finish painting, colour supplied by customer11. Mudguard: Plastic or steel12. Others: 1 tool box, 1 wheel carrier, excluding spare wheel
Optional Configurations1. Air suspension: Firestone, Goodyear or Chinese brand2. ABS system: Wabco or Chinese brand3. Axle: BPW 12 ton4. Ladder operation: Hydraulic -
1. Low bed trailer can be used to transport many kinds of mechanical equipment.2. The center of its mass is very low, so it’s very safe during the transportation.3. Multi-axle trailers, modular trailers, etc, for your reference.
